- Successor to Robertson 000753 ISD296T12MVIP; Now available in a 10 ea. Quik-Pak ROBERTSON 2P20158
- Electronic Equivalent to GE-260-IS-MV-N; Keystone KTEB-275-UV-TP-PIC-SL; Valmont E296PI120G11
- Electronic Equivalent to ICN-2P60-SC, REL-2P60-S; Espen VE275MVHIP; QTP2X96T12UNVIS, QT2X96/120IS, QT2X96/277IS
- Magnetic Equivalent to S-275-S-TP, R2E75STP, R2E60STP, R2E75STP, RSM175STP, V2E60STP, V2E75STP, VSM175STP
- Magnetic Equivalent to MB1X96IS120, MB1X96IS277, MB2X96IS120; B260I277RH
Retrofitting Wiring Diagarms
Performance Features
– Parallel Operation
– Instant Start
– High Power Factor
– Encased and Potted
– Sound Rated A
– Internal Surge Protection
- Maximum case temperature: 167°F/75°C
- Maximum ambient temperature 104°F/40°C
- Minimum starting temperature: 0°F/-18°C
- Minimum starting temperature for ES Lamps: 60°F/16°C

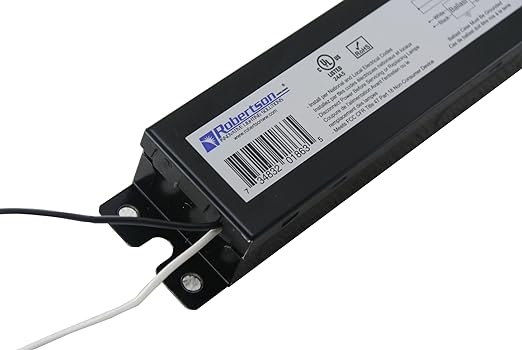

Robertson Worldwide ISL296T12MV Instant Start Fluorescent Electrical Ballast
Professional Grade, High Efficiency, Commercial and Residential Applications
The Robertson Sterling Series instant start electronic ballast for T12 fluorescent lamps is designed for replacement of electromagnetic ballasts during routine luminaire maintenance or in conjunction with programs to reduce energy consumption.
The ballast offers improved performance and energy savings of up to 20% over magnetic counterparts, while still using the existing T12 lamps. Plus the added benefits of extended lamp life, significantly quieter and low profile housing for enhanced flexibility and versatility.
The electronic fluorescent ballast operates at 120-277 input volts. The ballast will provide the best in aesthetics and illumination in warehouse, light industrial & residential applications.
- Operates 2/1 F96T12 Lamps
- Operates 2/1 F96T12ES Lamps
- Operates 2/1 F96T12HO Lamps
- Operates 2/1 F72T12 Lamps
- Operates 2/1 F48T12 Lamps

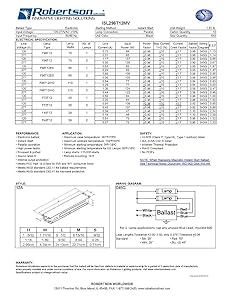

Specification Sheet
|
|
|
|---|---|---|
Installer BenefitsReplacing T12 magnetic ballasts with the Robertson ISL296T12MV electronic ballasts is quick and easy. Making the switch is a snap. The Robertson electronic fluorescent ballast operates in the same fixture, with the same lamps. The ballast features simple wiring and the same mounting footprint as the magnetic ballast being replaced. In addition, the T12 electronic ballast is approved for installation in both commercial and residential applications. | End-User BenefitsThe Robertson T12 electronic fluorescent ballast is designed to provide optimal energy savings when coupled with energy-efficient lamps. The light levels are the same, but with no buzz or hum as with magnetic ballasts. |
